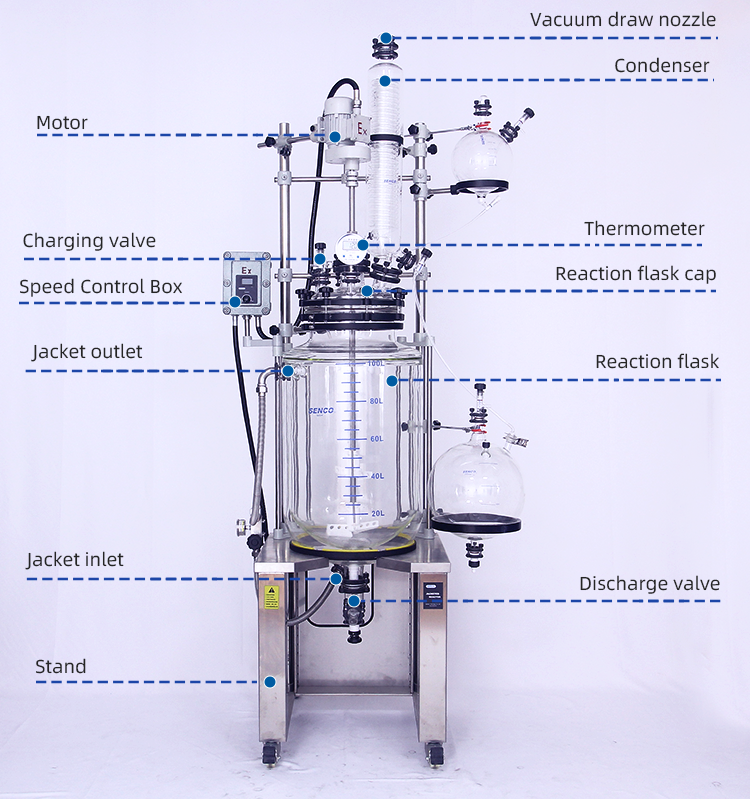

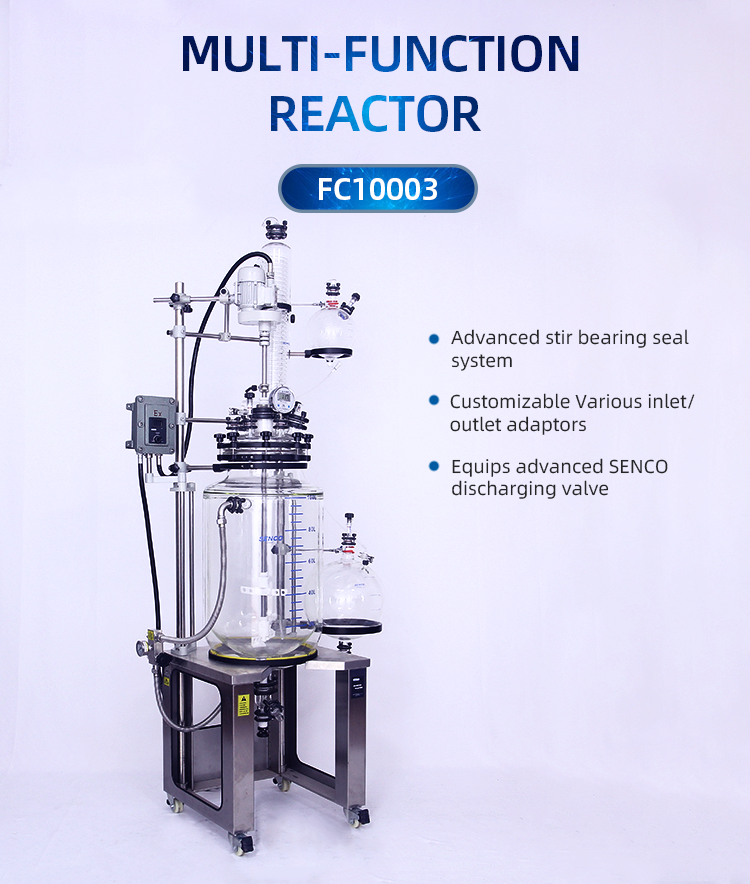

100L Jacketed Reactor FC10003
- High vacuum performance is able to reach 133Pa(1.33mbar, 1 Torr);
- Long lasting sealing performance, majority user do not replace sealing part in one year
- Rich function,can be customized as your demand
- Popular model FC10003 among Senco big Jacketed Reactor
- Frequency-conversion stirring system + PTFE seal & bearing system
- Digital display and control
- Explosion-proof type is optional
100L Jacketed Reactor FC10003 - 介绍
申请免费实验
(大陆地区，月限2个名额)
Apply for co-experiment with SENCO to confirm
equipment’s suitability and efficiency
06
客户反馈实验结果
共同评估后确认下轮实验方案
100L Jacketed Reactor FC10003- 参数
| Reaction VesselCapacity (L) |
100L |
| Port nos. on Cap |
7 |
| Flush Diameter (mm) |
Ø32 |
| Rotation Speed (rpm) |
20-280 |
| Nominal Toque (Ncm) |
475 |
| Motor |
200W(120W-ex)/5 |
| Dimeter of Stirring Rod(mm) |
Ø20 |
| Power |
220V,1P,50/60Hz |
| Dimensions (cm) |
120x70x250H |
*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)
100L Jacketed Reactor FC10003 - 配套产品
100L Jacketed Reactor FC10003 - 配件
100L Jacketed Reactor FC10003 - 优势
100L Jacketed Reactor FC10003 - 资料
下载
| 大型双层反应釜 Jacketed reactor(10L~100L) |
下载 |
| Catalog for SENCO-2018(4M) |
下载 |
