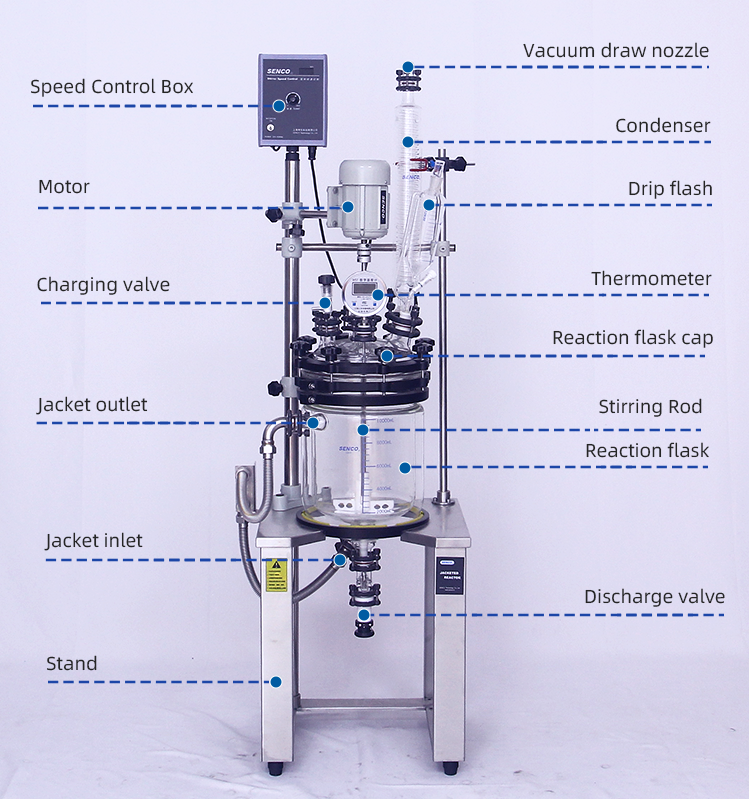

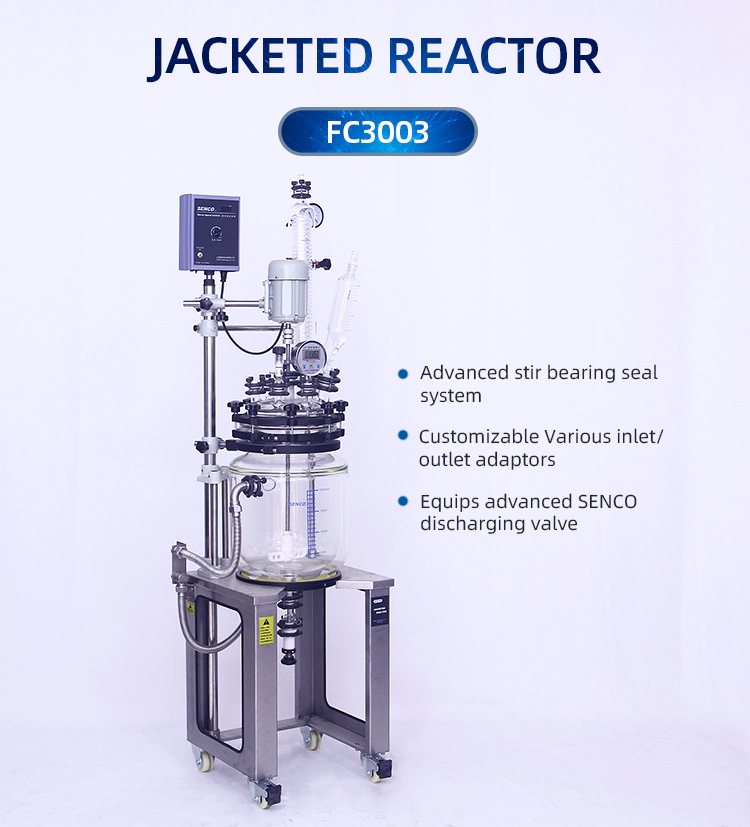

30L Jacketed Reactor FC3003

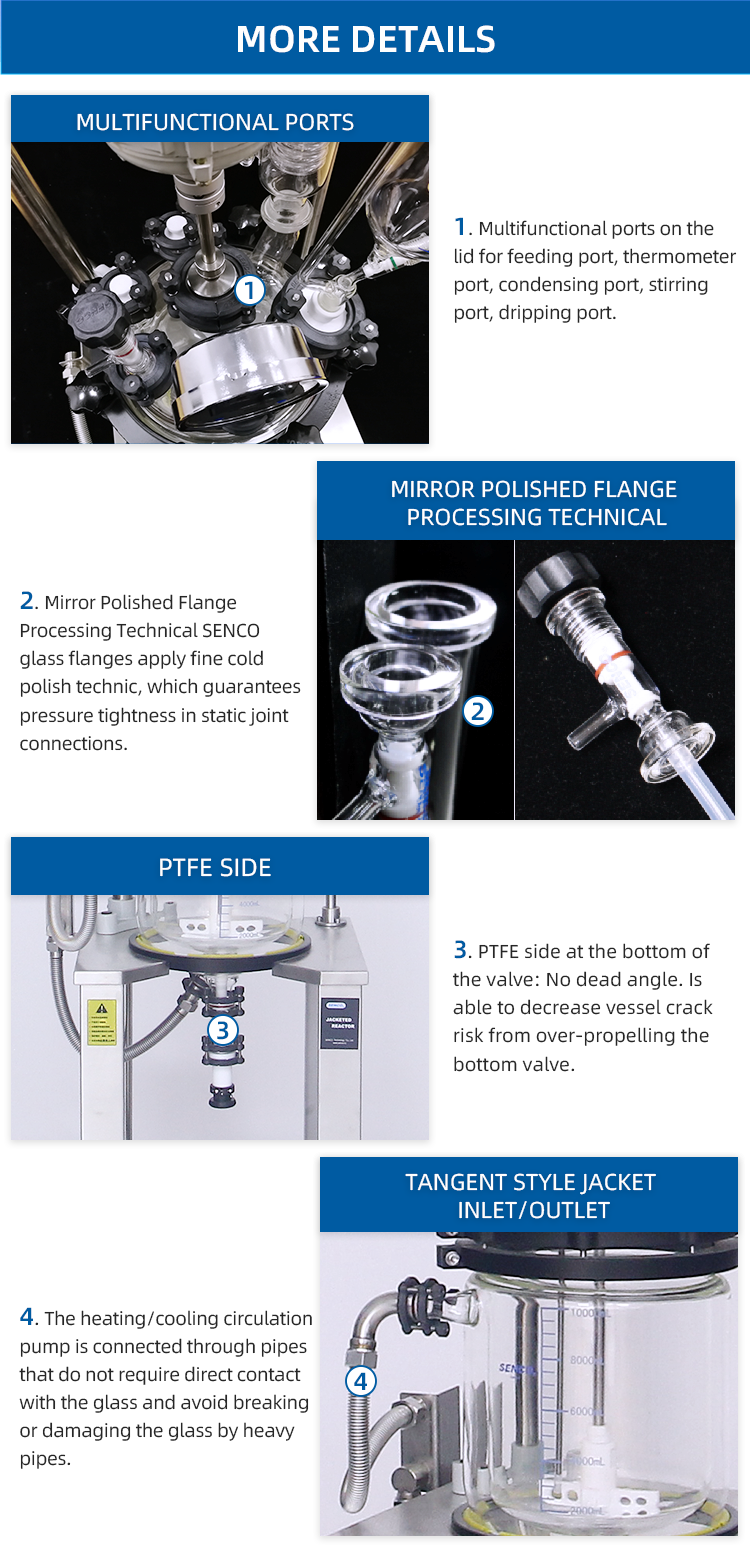

- Reaction flask equips SENCO no-dead angle PTFE discharging valve (Flush type or Suck type optional). All reactant is able to join reaction process with no pollution.
- Equips Tangent Jacket Circulation, which achieves quicker heat exchange performance.
- Frequency Conversion Stirring System, which offer longer life service, stabler operation, and sufficient stiring effects.
- Frequency Conversion Stirring System, which offer longer life service, stabler operation, and sufficient stiring effects.
- Easy clip Flange clamp, makes all flangejoint connects simple and safe.
30L Jacketed Reactor FC3003 - 介绍
申请免费实验
(大陆地区，月限2个名额)
Apply for co-experiment with SENCO to confirm
equipment’s suitability and efficiency
06
客户反馈实验结果
共同评估后确认下轮实验方案

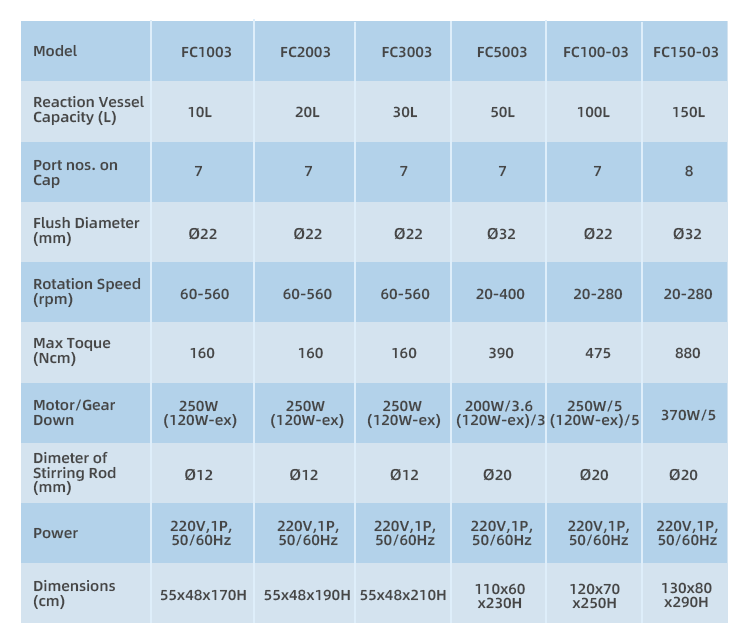

30L Jacketed Reactor FC3003- 参数
| Reaction VesselCapacity (L) |
30L |
| Port nos. on Cap |
7 |
| Flush Diameter (mm) |
Ø22 |
| Rotation Speed (rpm) |
60-560 |
| Rotation Speed (rpm) |
160 |
| Motor |
250W/120W-ex |
| Dimeter of Stirring Rod(mm) |
Ø12 |
| Power |
220V,1P,50/60Hz |
| Dimensions (cm) |
55x48x210H |
*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)
30L Jacketed Reactor FC3003 - 配套产品
30L Jacketed Reactor FC3003 - 配件
30L Jacketed Reactor FC3003 - 优势
30L Jacketed Reactor FC3003 - 资料
下载
| Catalog for SENCO-2018(4M) |
下载 |
