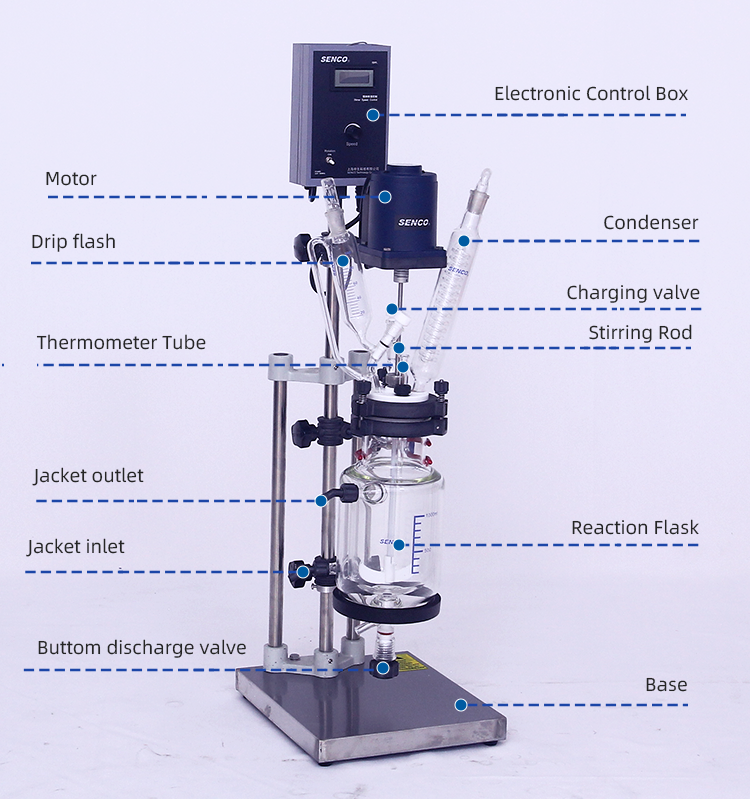

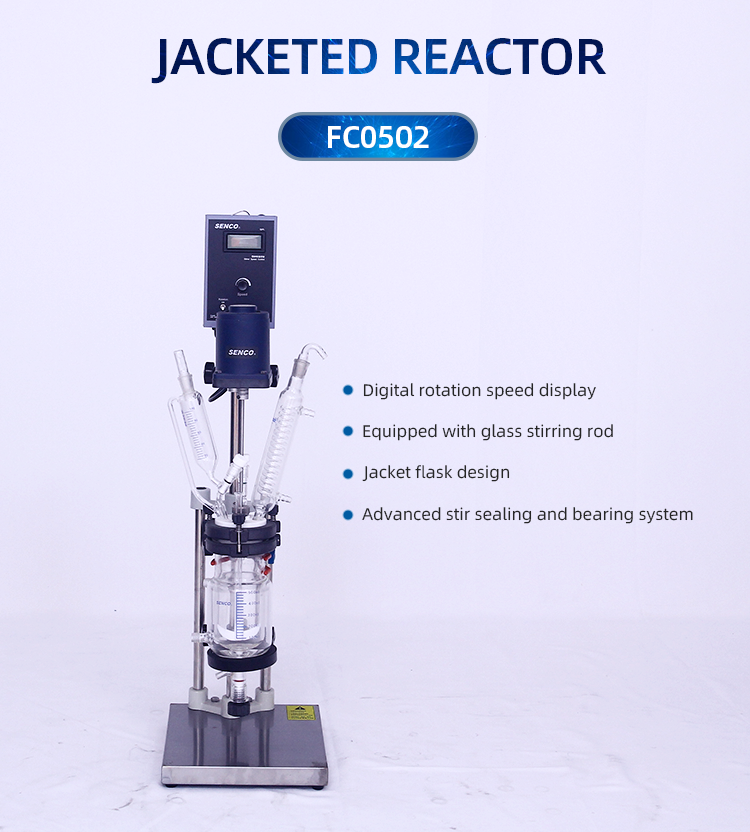

500ml Jacketed reactor FC0502
- Apply AC induction motor with stepless speed control. Product configures constant speed stir, digital rotation speed display, low temp-rise motor, no spark operation, and is able to work continuously.
- Equipped with glass stirring rod which offers clean, no corrosion stir.
- Jacket flask design allows convenient alternation of heating or cooling.
- Advanced stir sealing and bearing system keeps high vacuum rate.
- No dead angle bottom discharging valve is featured with no pollution to solvent and complete discharge.
- Distillation & more functions are optional to standard product.
500ml Jacketed reactor FC0502 - 介绍
申请免费实验
(大陆地区,月限2个名额)
Apply for co-experiment with SENCO to confirm
equipment’s suitability and efficiency
06
客户反馈实验结果
共同评估后确认下轮实验方案

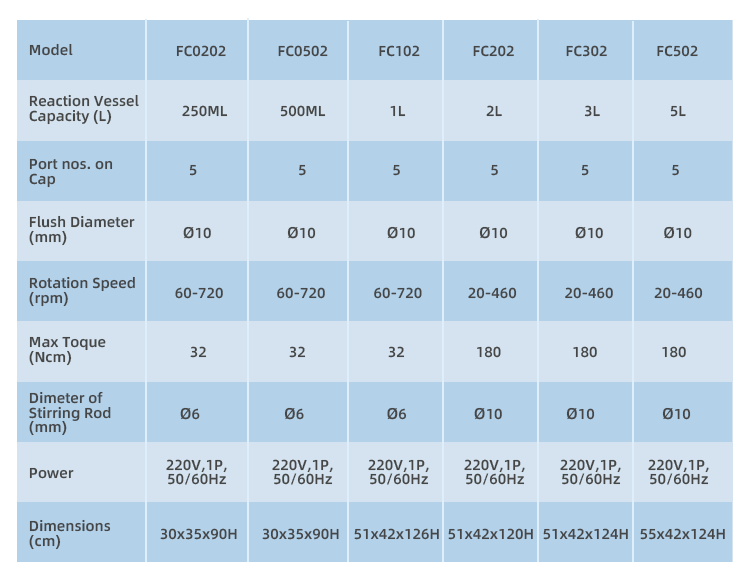

500ml Jacketed reactor FC0502- 参数
Reaction VesselCapacity |
500ml |
Flush Diameter (mm) |
Ø10 |
Neck No. on Cap |
5 |
Rotation Speed (rpm) |
60-720 |
Nominal Toque (Ncm) |
32 |
Dimeter of StirringRod (mm) |
Ø6 |
Power |
220V,1P |
Dimensions (cm) |
30x35x90H |
*符号含义:/ - 无,● - 已配,○ - 可选 ( * - 此选配功能必须在工厂生产时组装,不能单独另配)
500ml Jacketed reactor FC0502 - 配套产品
500ml Jacketed reactor FC0502 - 配件
500ml Jacketed reactor FC0502 - 优势
