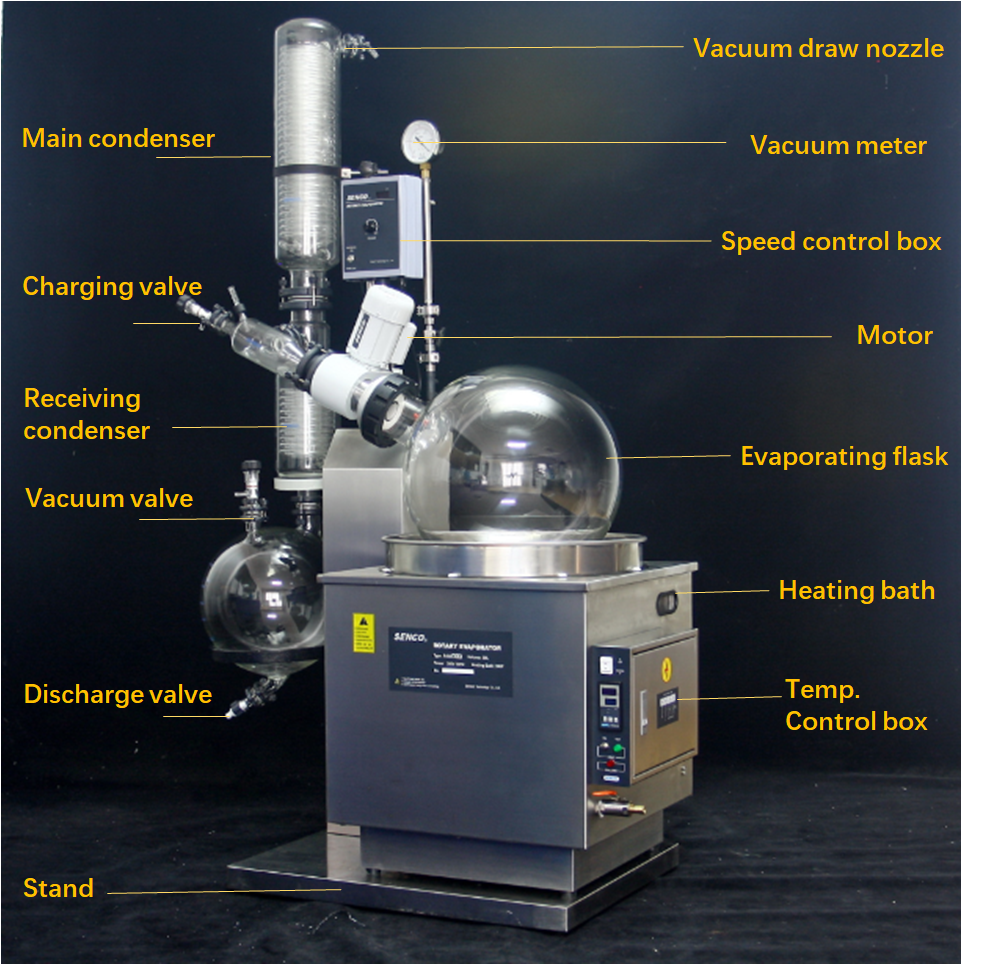

20L Electric Bath Lift Rotary Evaporator R2006KB
- Apply unique PTFE and Viton composite sealing technology; product has both super good sealing and anti-corrosion performances.
- Mirror flange sealing surface equips SENCO pre-load flange connect device, connection is easy and is not affected from temperature change.
- No taper grind joints, no glass valves, completely no vacuum gel pollution and no risk of glass crack from seizure.
- Apply original patent technology “Continuous Tandem Receiving”, system vacuum remains unchanged while discharge. Allow user to perform real non-stop operation so to achieve high productivity.
- Apply dual efficient condensers to support high receiving rate.
- Product is well designed on both overall structure and detail functions, using selected materials.
20L Electric Bath Lift Rotary Evaporator R2006KB - 介绍
申请免费实验
(大陆地区，月限2个名额)
Apply for co-experiment with SENCO to confirm
equipment’s suitability and efficiency
06
客户反馈实验结果
共同评估后确认下轮实验方案
20L Electric Bath Lift Rotary Evaporator R2006KB- 参数
| Evaporating Flask (L) |
20L/ F120 |
| Receiving Flask with bottom discharge (L) |
10L/F40 |
| Condensing Surface (m2) |
1 |
| Rotation Speed (rpm) |
3-110 |
| Evaporating Speed (H2O)** |
5L/h |
| Reachable Vacuum Rate |
< 133Pa (1.33mbar, 1 Torr) |
| Bath Power (kW) |
5 / 3.6 (Ex or oil) |
| Static Temp. Control Range &Wave (℃ ) |
0-99(180)±0.2 |
| Bath Size, Capacity, Materia |
Ø45x27H, 40L, SUS304 |
| Power |
220V,1P, 50/60Hz |
| Dimensions (cm) |
110x65x190H |
*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)
20L Electric Bath Lift Rotary Evaporator R2006KB - 配套产品
20L Electric Bath Lift Rotary Evaporator R2006KB - 配件
20L Electric Bath Lift Rotary Evaporator R2006KB - 优势

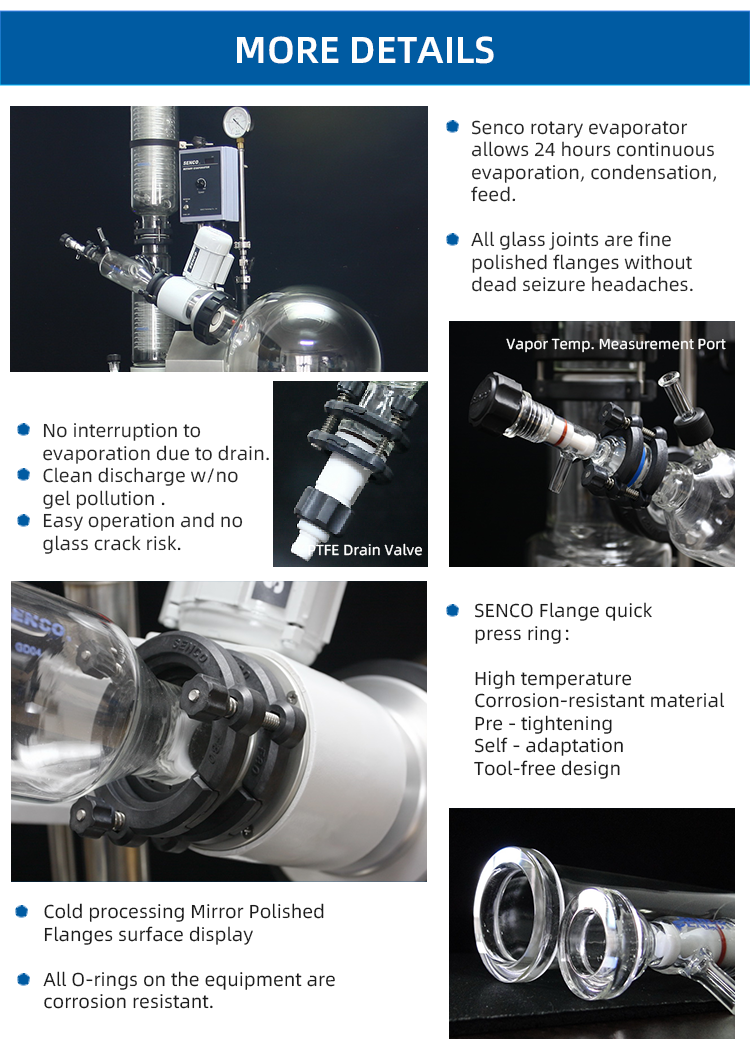

- Mirror flange sealing surface equips SENCO pre-load flange connect device, connection is easy and is not affected from temperature change.
- No taper grind joints, no glass valves, completely no vacuum gel pollution and no risk of glass crack from seizure.
- Product is well designed on both overall structure and detail functions, using selected materials.
20L Electric Bath Lift Rotary Evaporator R2006KB - 资料
下载
| 大型旋转蒸发器 Rotary Evaporator 10-50L |
下载 |
| Catalog for SENCO-2018(4M) |
下载 |
