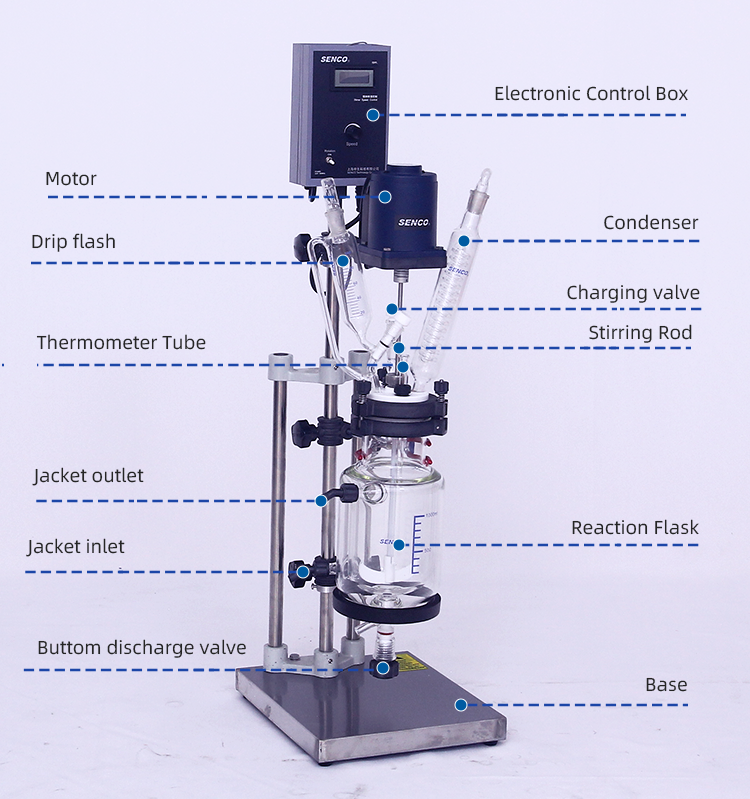

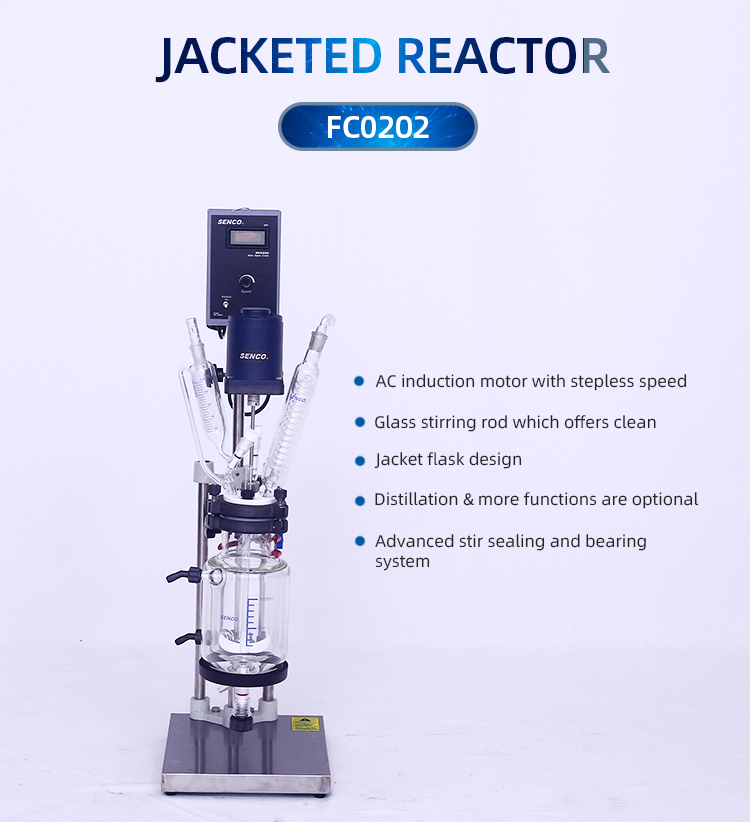

250ml Jacketed Reactor FC0202
- Apply AC induction motor with stepless speed control. Product configures constant speed stir, digital rotation speed display, low temp-rise motor, no spark operation, and is able to work continuously.
- Equipped with glass stirring rod which offers clean, no corrosion stir.
- Jacket flask design allows convenient alternation of heating or cooling.
- Advanced stir sealing and bearing system keeps high vacuum rate.
- No dead angle bottom discharging valve is featured with no pollution to solvent and complete discharge.
- Distillation & more functions are optional to standard product.
250ml Jacketed Reactor FC0202 - 介绍
申请免费实验
(大陆地区，月限2个名额)
Apply for co-experiment with SENCO to confirm
equipment’s suitability and efficiency
06
客户反馈实验结果
共同评估后确认下轮实验方案

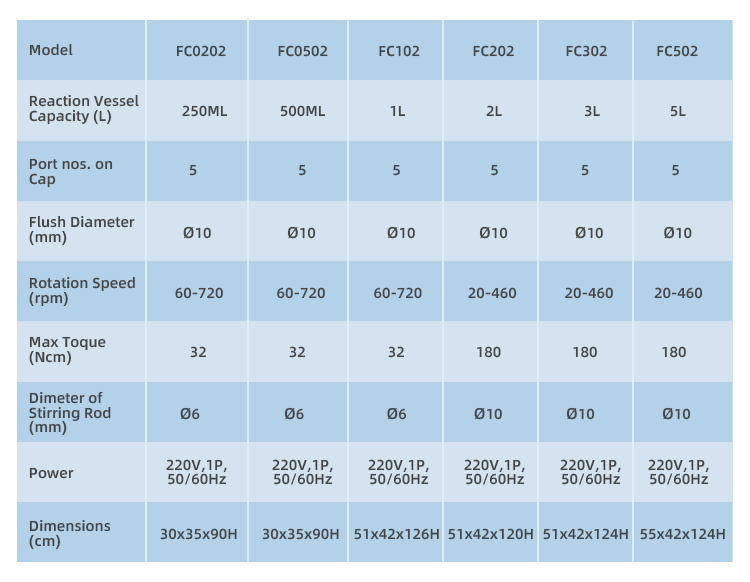

250ml Jacketed Reactor FC0202- 参数
| Reaction VesselCapacity |
250ml |
| Flush Diameter (mm) |
Ø10 |
| Neck No. on Cap |
5 |
| Rotation Speed (rpm) |
60-720 |
| Nominal Toque (Ncm) |
32 |
| Dimeter of StirringRod (mm) |
Ø6 |
| Power |
220V,1P |
| Dimensions (cm) |
30x35x90H |
*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)
