5L Multifunctional Reactor FH501
- Apply 3-phase induction motor with frequency-converting speed regulation. Digital Rotation Speed Display. Low Temp-rise Motor, no spark, can perform continuous work.
- PTFE Rigid Stirring Rod is anticorrosive and can perform high speed stirring.

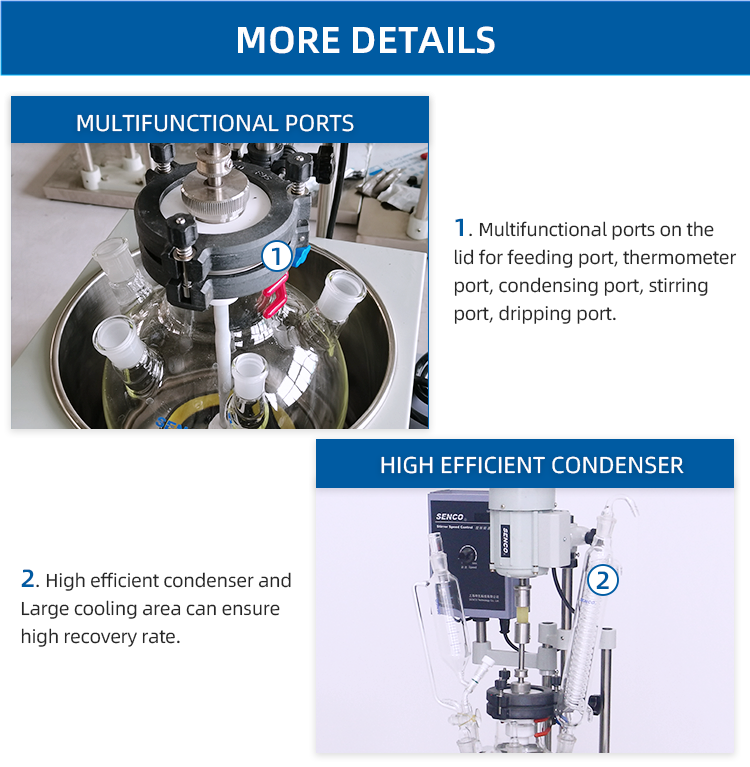

- Advanced sealing system keeps high vacuum rate.
- Flange joints secured by nuts offer convenient flask assembly and disassembly.
- Bath is equipped with precise intelligent temperature controller and drain valve.
5L Multifunctional Reactor FH501 - 介绍
申请免费实验
(大陆地区，月限2个名额)
Apply for co-experiment with SENCO to confirm
equipment’s suitability and efficiency
06
客户反馈实验结果
共同评估后确认下轮实验方案

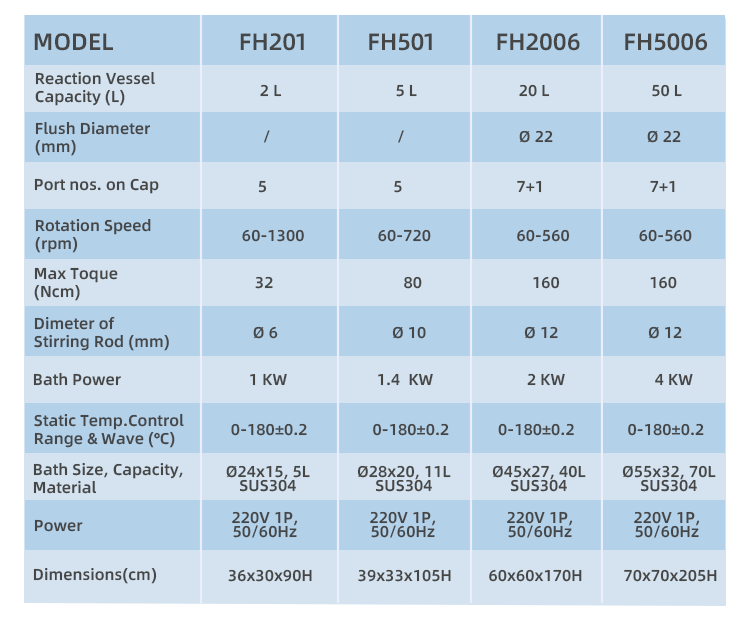

5L Multifunctional Reactor FH501- 参数
| Reaction Flask (L) |
5L |
| Flush Diameter (mm) |
/ |
| Neck No. on Reaction Flask |
5 |
| Rotation Speed (rpm) |
60-720 |
| Nominal Toque (Ncm) |
80 |
| Dimeter of Stirring Rod (mm) |
Ø10 |
| Bath Power (kW) |
1.4kW |
| Static Temp. Control Range& Wave (℃) |
0-180±0.2 |
| Bath Size (cm), Capacity,Materia |
Ø28x20, 11LSUS304 |
| Power |
220V 1P, 50/60Hz |
| Dimensions (cm) |
39x33x105H |
*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)
5L Multifunctional Reactor FH501 - 配套产品
5L Multifunctional Reactor FH501 - 配件
5L Multifunctional Reactor FH501 - 优势
5L Multifunctional Reactor FH501 - 资料
