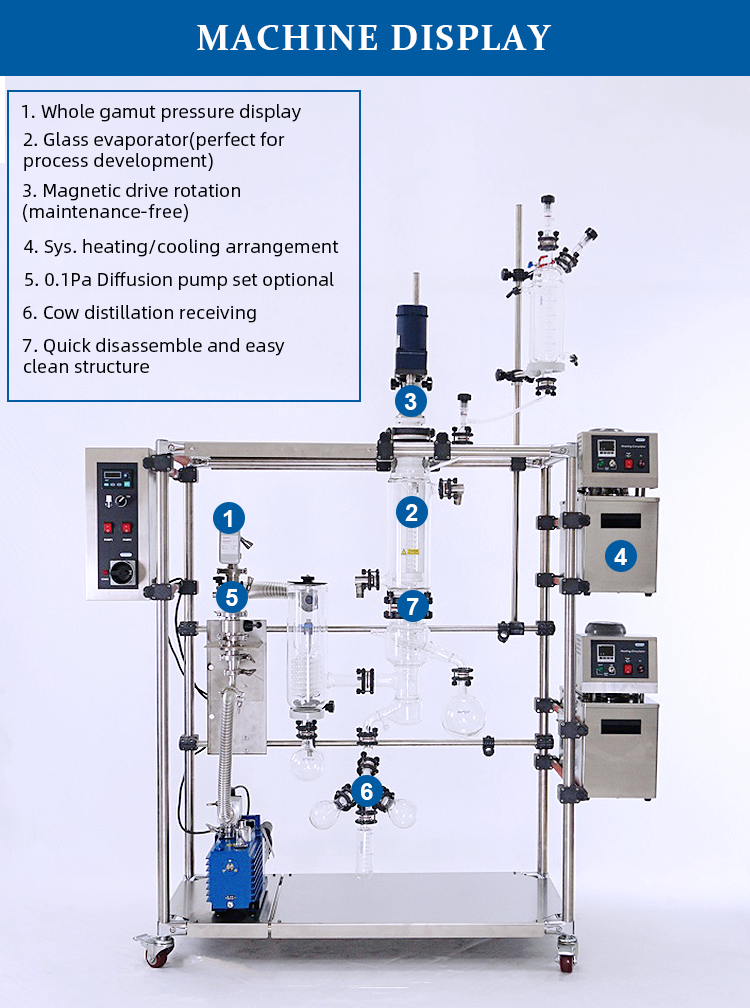

Short Path Distillation MD800 - 介绍







(大陆地区，月限2个名额)

Apply for co-experiment with SENCO to confirm equipment’s suitability and efficiency

SENCO

021-63040662

web@senco.cc

填写申请表

确定初步

实验方案和时间

摸底实验

可来人带料或不来人寄料

样品寄送

客户检测

确认设备适用性和有效性

客户反馈实验结果

共同评估后确认下轮实验方案

进阶实验

确定最佳分离工艺

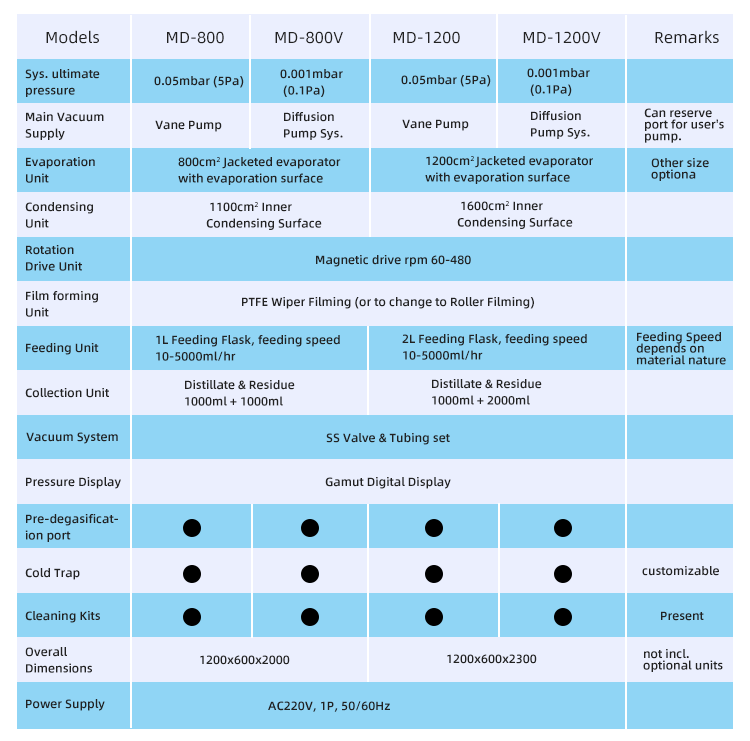

Short Path Distillation MD800- 参数

Sys. ultimate pressure	0.05mbar (5Pa)
Main Vacuum Supply	Vane Pump
Evaporation Unit	800cm2 Jacketed evaporator with evaporation surface
Condensing Unit	1100cm2 Inner Condensing Surface
Rotation Drive Unit	Magnetic drive rpm 60-480
Film forming Unit	PTFE Wiper Filming (or to change to Roller Filming)

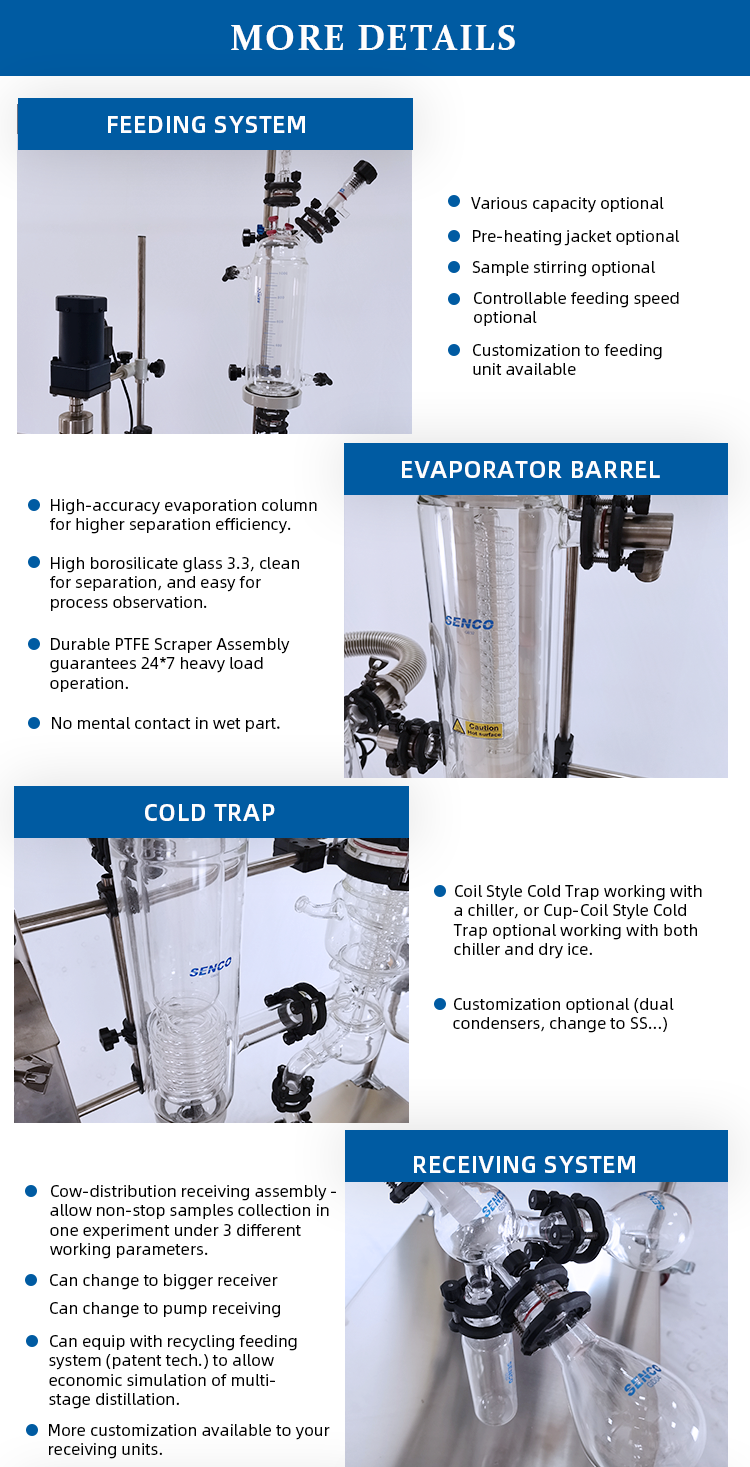

Feeding Unit	1L Feeding Flask, feeding speed 10-5000ml/hr
Collection Unit	Distillate & Residue1000ml + 1000m
Vacuum System	SS Valve & Tubing set
Pressure Display	Gamut Digital Display
Pre-degasification port	●
Cold Trap	●
Cleaning Kits	●
Overall Dimensions	1200x600x2000
Power Supply	AC220V, 1P, 50/60Hz

*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)

Short Path Distillation MD800 - 配套产品

暂无配套产品

Short Path Distillation MD800 - 配件

暂无配件

Short Path Distillation MD800 - 优势

Short Path Distillation MD800 - 资料

分子蒸馏	下载
Catalog for SENCO-2018(4M)	下载
