2L Rotary Evaporator R206_0.1-5L Rotary Evaporator_Product

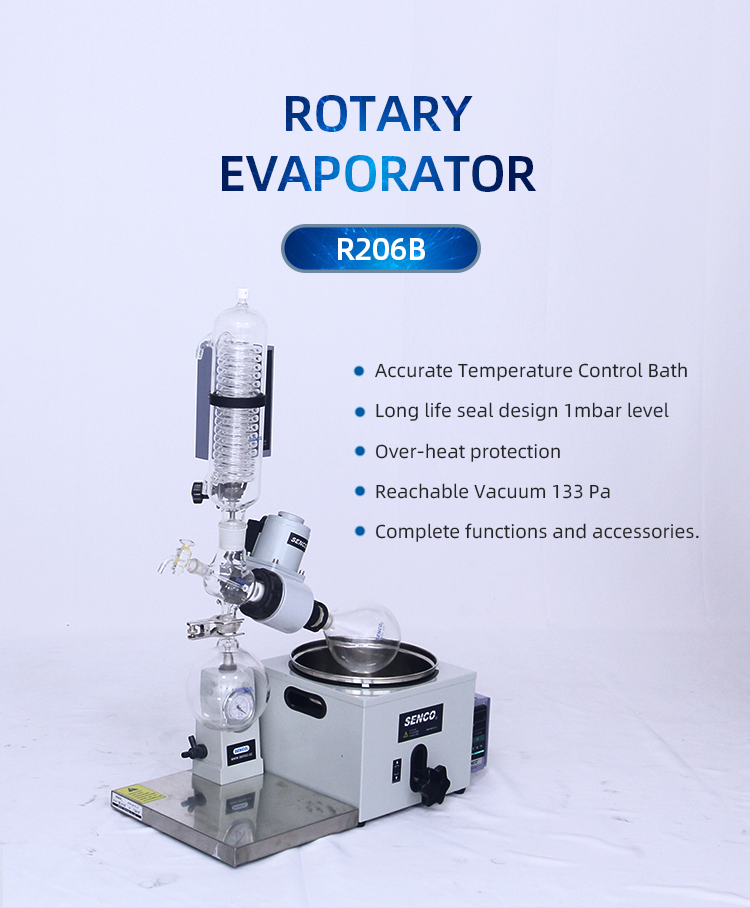

0.1-5L Rotary Evaporator

High vacuum performance is able to reach 133Pa(1.33mbar, 1 Torr).
Sealing parts are made by PTFE material, whcih can keep a high vacuum space for the whole system.
Long lasting sealing performance, majority user do not replace sealing part in one year.

报价需求对比下载技术指标

2L Rotary Evaporator R206 - 介绍

(大陆地区，月限2个名额)

Apply for co-experiment with SENCO to confirm equipment’s suitability and efficiency

SENCO

021-63040662

web@senco.cc

填写申请表

确定初步

实验方案和时间

摸底实验

可来人带料或不来人寄料

样品寄送

客户检测

确认设备适用性和有效性

客户反馈实验结果

共同评估后确认下轮实验方案

进阶实验

确定最佳分离工艺

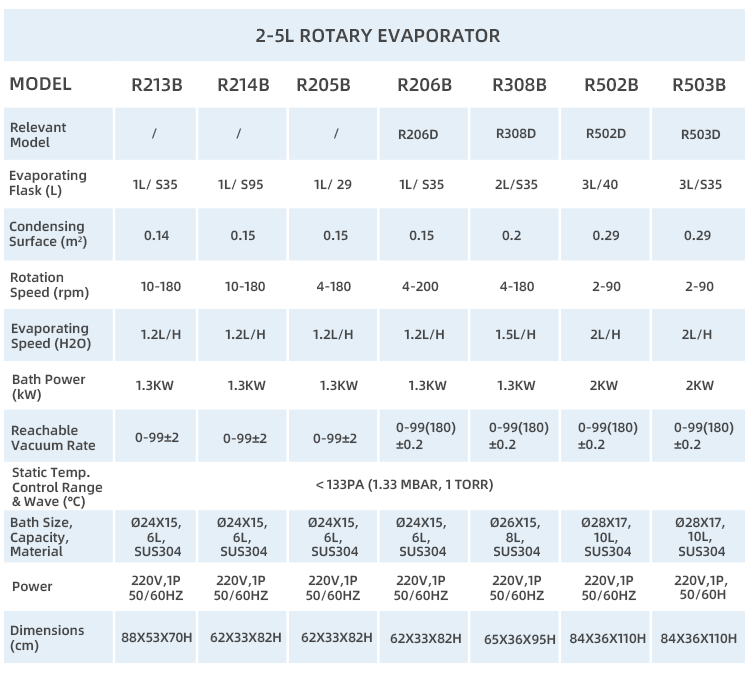

2L Rotary Evaporator R206- 参数

Evaporating Flask (L)	0.5+1L/29, (2L/29)
Receiving Flask (L)	1L/S35
Condensing Surface(m2)	Vertical 0.15
Rotation Speed (rpm)	4-200
Max EvaporatingSpeed (H2O)**	1.2L/h
Reachable VacuumRate	< 133Pa (1.33mbar, 1 Torr)
Bath Power (kW)	1.3kW
Static Temp. ControlRange & Wave (℃)	0-99(180)±2
Bath Size, Capacity,Material	Ø24x15, 6L, SUS304
Power	220V,1P, 50/60Hz
Dimensions (cm)	62x33x82H

*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)

2L Rotary Evaporator R206 - 配套产品

暂无配套产品

2L Rotary Evaporator R206 - 配件

暂无配件

2L Rotary Evaporator R206 - 优势

2L Rotary Evaporator R206 - 资料

Catalog for SENCO-2018(4M)
