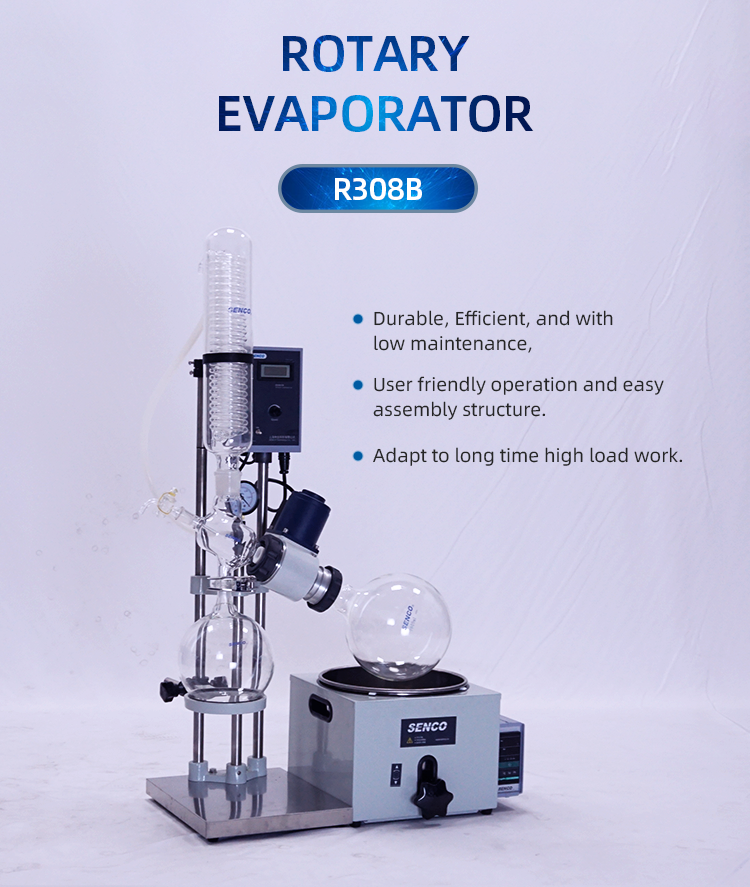

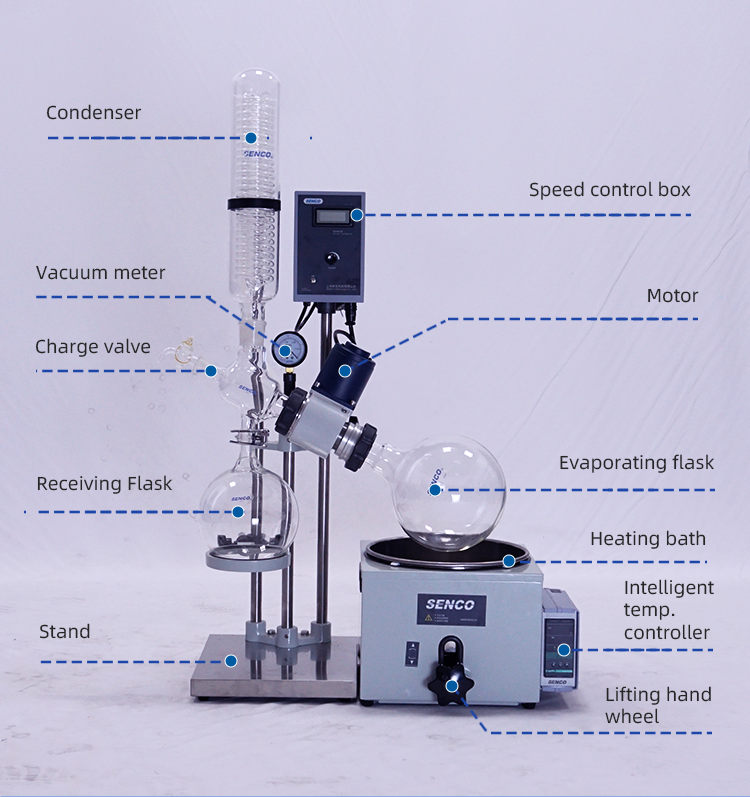

3L Rotary Evaporator R308

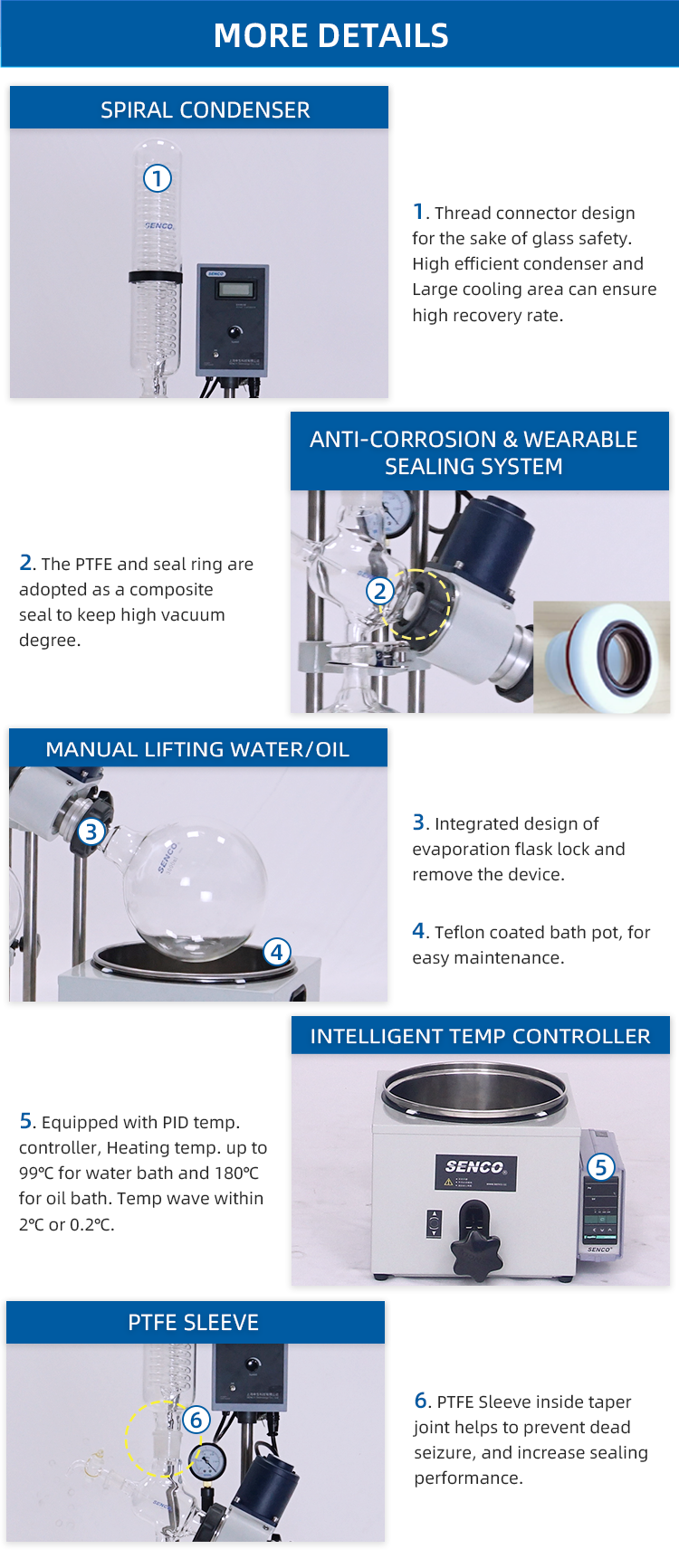

- High vacuum performance is able to reach 133Pa(1.33mbar, 1 Torr).
- Sealing parts are made by PTFE material, whcih can keep a high vacuum space for the whole system.
- Long lasting sealing performance, majority user do not replace sealing part in one year.
3L Rotary Evaporator R308 - 介绍
申请免费实验
(大陆地区，月限2个名额)
Apply for co-experiment with SENCO to confirm
equipment’s suitability and efficiency
06
客户反馈实验结果
共同评估后确认下轮实验方案

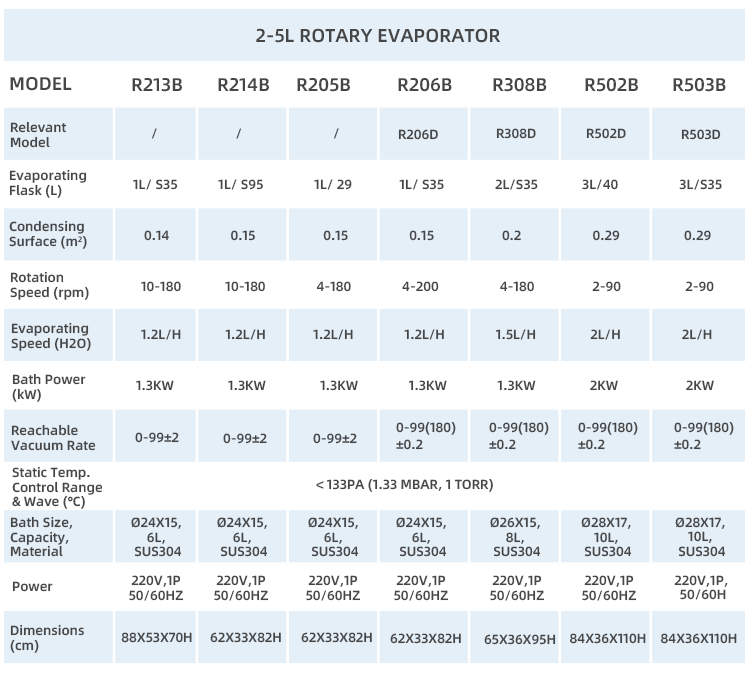

3L Rotary Evaporator R308- 参数
| Evaporating Flask (L) |
3L / F50 |
| Receiving Flask (L) |
2L/S35 |
| Condensing Surface(m2) |
Vertical 0.2 |
| Rotation Speed (rpm) |
4-180 |
| Max EvaporatingSpeed (H2O)** |
1.5L/h |
| Reachable Vacuum Rate |
< 133Pa (1.33mbar, 1 Torr) |
| Bath Power (kW) |
1.3kW |
| Static Temp. ControlRange & Wave (℃) |
0-99(180)±0.2 |
| Bath Size, Capacity,Material |
Ø26x15, 8L,SUS304 |
| Power |
220V,1P, 50/60Hz |
| Dimensions (cm) |
65x36x95H |
*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)
3L Rotary Evaporator R308 - 配套产品
3L Rotary Evaporator R308 - 配件
3L Rotary Evaporator R308 - 优势
- high efficient evaporator
- high receiving rate
- low leakage rate
3L Rotary Evaporator R308 - 资料
