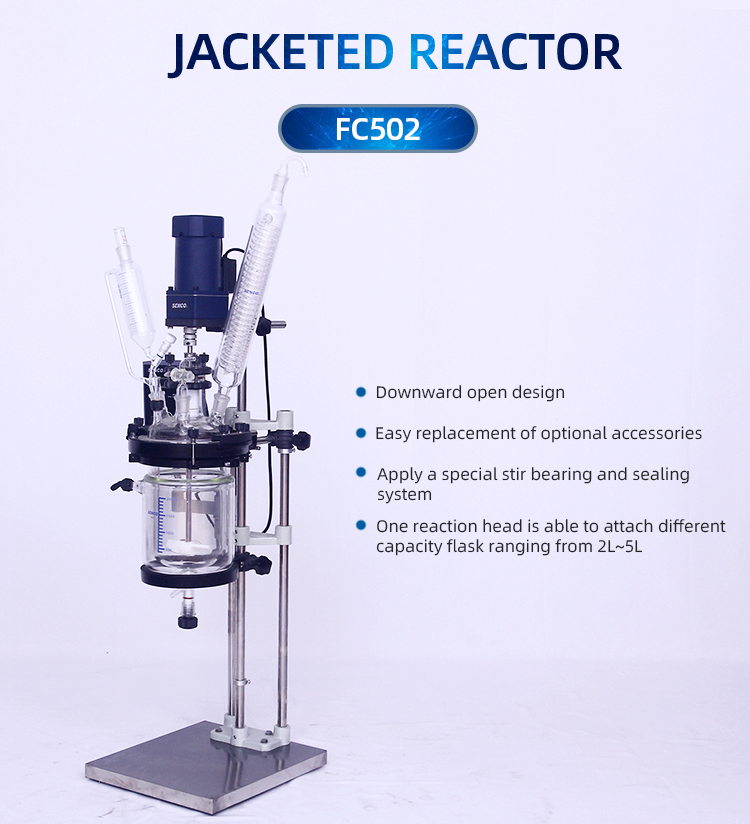

5L Jacketed Reactor FC502
- High vacuum performance is able to reach 133Pa(1.33mbar, 1 Torr)
- Long lasting sealing performance, majority user do not replace sealing part in one year
- Rich function,can be customized as your demand
- Popular model FC502 among Senco small Jacketed Reactor
5L Jacketed Reactor FC502 - 介绍
申请免费实验
(大陆地区，月限2个名额)
Apply for co-experiment with SENCO to confirm
equipment’s suitability and efficiency
06
客户反馈实验结果
共同评估后确认下轮实验方案

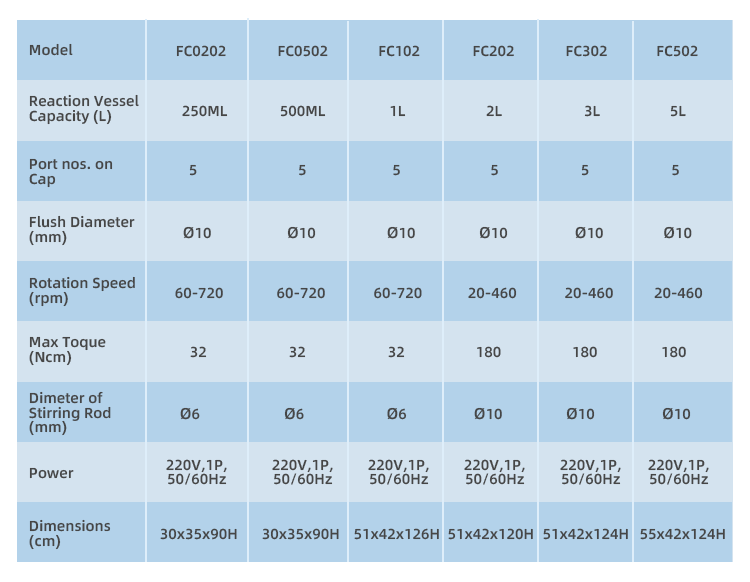

5L Jacketed Reactor FC502- 参数
| Reaction Vessel Capacity |
5L |
| Flush Diameter (mm) |
Ø10 |
| Neck No. on Cap |
5 |
| Rotation Speed (rpm) |
20~460 |
| Nominal Toque (Ncm) |
180 |
| Dimeter of Stirring Rod (mm) |
Ø10 |
| Power |
220V,1P |
| Dimensions (cm) |
55x42x124H |
*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)
5L Jacketed Reactor FC502 - 配套产品
5L Jacketed Reactor FC502 - 配件
5L Jacketed Reactor FC502 - 优势
5L Jacketed Reactor FC502 - 资料
下载
| SENCO-R220-Leaflet-en |
下载 |
| 小型双层反应釜 |
下载 |
| Catalog for SENCO-2018(4M) |
下载 |
