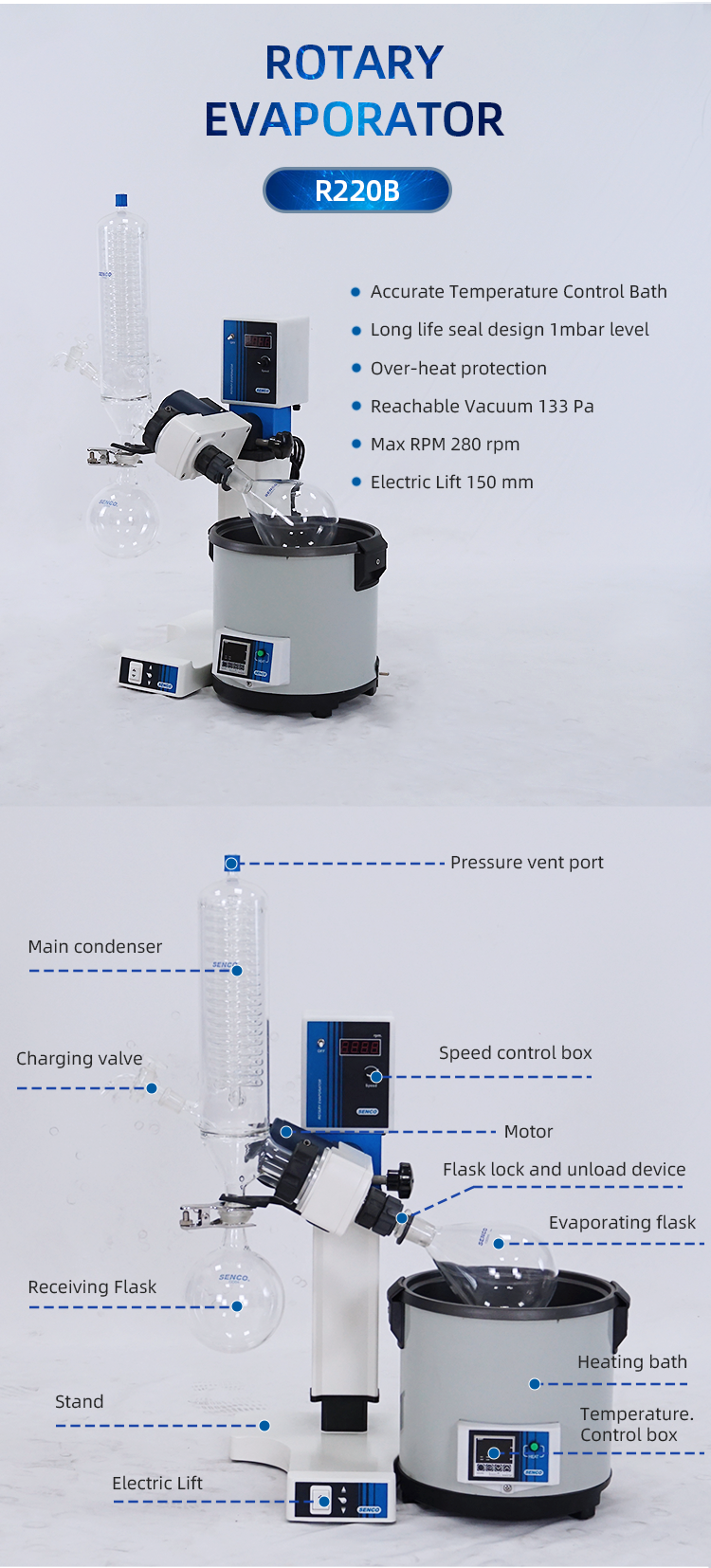

2L Electric Lift Rotary Evaporator R220

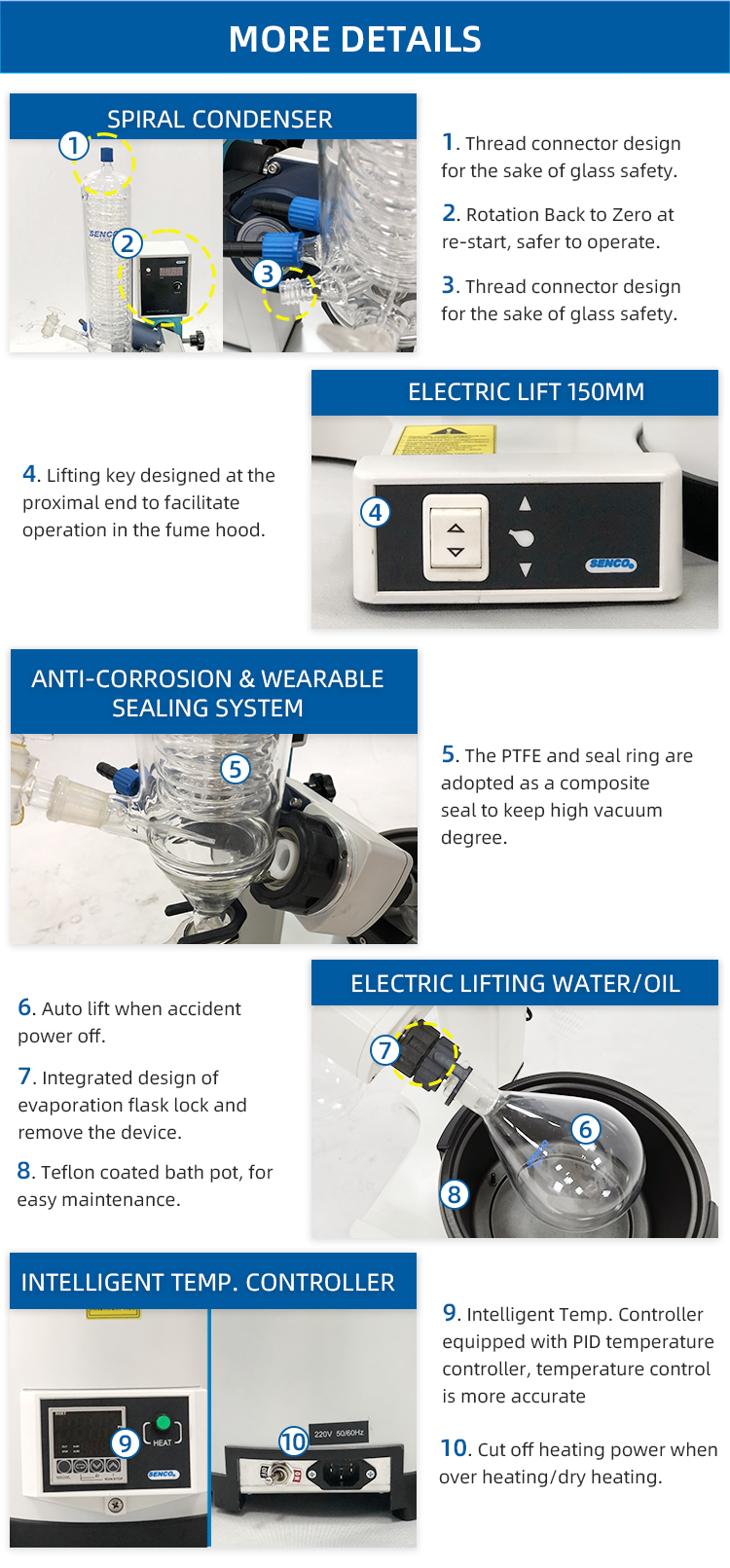

Auto lift when accident power off
Rotation Back to Zero at re-start,safer to operate
Offer vacuum release port
Cut off heating power when overheating/dry heating.
Lifting key designed at the proximalend to facilitate operation in thefume hood
Thread connector design for thesake of glass safety
Integrated design of evaporationflask lock and remove device
Offer electric power switch toheating bath
Teflon coated bath pot, for easymaintenance
Main parts apply anti-corrosion andheat resistant material

2L Electric Lift Rotary Evaporator R220 - 介绍

Products Description

Newest design of 2L rotary evaporator from Senco.

Capacity: 0.5~2L max Bath Temp.: Water bath: 99C±1(2)℃; Oil bath: 180C±1(2)℃ PID Control, temp. digital display Vacuum: 133Pa, long duration seal design Rotation: 280rpm max

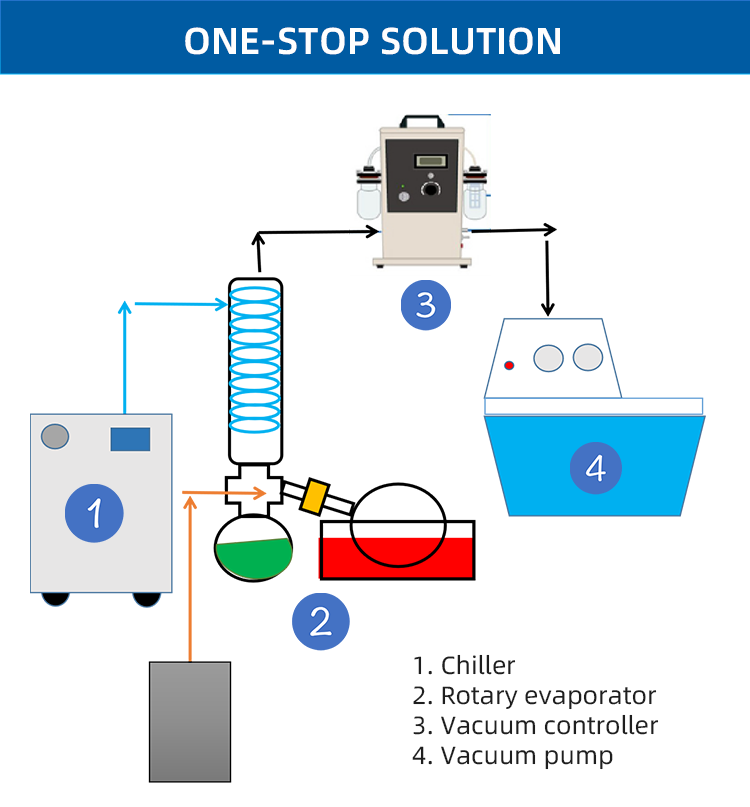

The rotary evaporator is heated by a water bath(oil bath) to form a thin film under the negative pressure condition, evaporate quickly, then condense and recycle the solvent simultaneously. The apparatus is particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, recovery and so on.

申请免费实验

(大陆地区，月限2个名额)

Apply for co-experiment with SENCO to confirm equipment’s suitability and efficiency

01

SENCO

021-63040662

web@senco.cc

02

填写申请表

04

确定初步

实验方案和时间

04

摸底实验

可来人带料或不来人寄料

05

样品寄送

客户检测

确认设备适用性和有效性

06

客户反馈实验结果

共同评估后确认下轮实验方案

07

进阶实验

确定最佳分离工艺

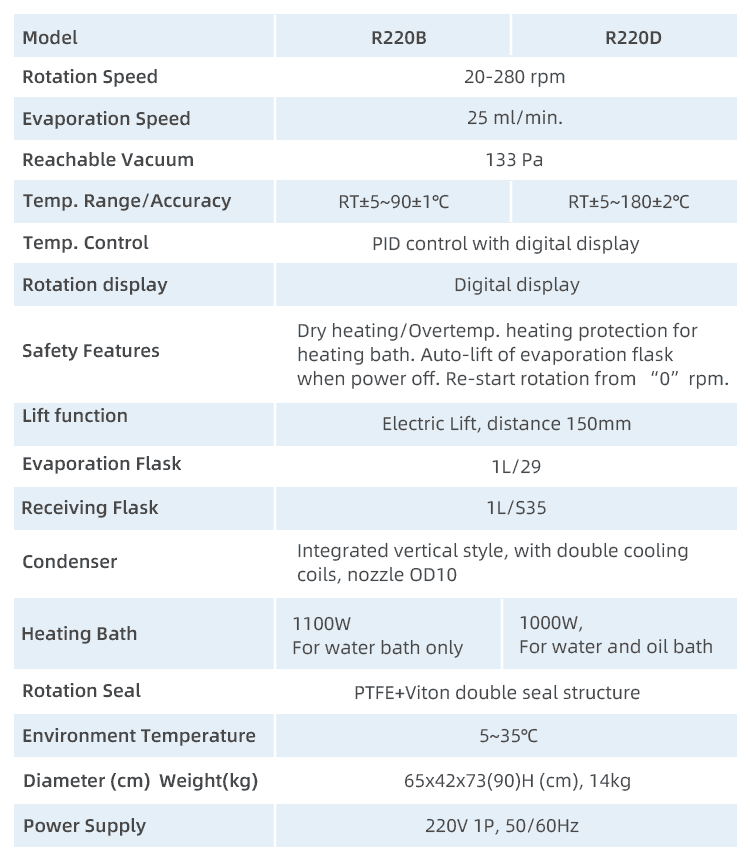

2L Electric Lift Rotary Evaporator R220- 参数

Rotation Speed	20-280 rpm
Evaporation Speed (H2O, max)*	25 ml/min.
Reachable Vacuum	133 Pa
Temp. Range/Accuracy	RT±5~90(180)±1℃
Temp. Control	PID control with digital display
Rotation display	Digital display
Lift function	Electric Lift, distance 150mm
Safety Features	Dry heating/Overtemp. heating protection for heating bath. Auto-lift of evaporation flask when power off. Re-start rotation from “0”rpm
Evaporation Flask *	1L/29
Receiving Flask	1L/S35
Condenser	Integrated vertical style, with double cooling coils, nozzle OD10
Heating Bath	1100W, for water bath only, 1000W, for water and oil bath
Rotation Seal	PTFE+Viton double seal structure
Environment Temperature	5~35℃
Diameter WxDxH (cm)，Weight(kg)	65x42x73(90)H (cm), 14kg
Power Supply	220V 1P, 50/60Hz

*符号含义:/ - 无，● - 已配，○ - 可选 ( * - 此选配功能必须在工厂生产时组装，不能单独另配)

2L Electric Lift Rotary Evaporator R220 - 配套产品

暂无配套产品

2L Electric Lift Rotary Evaporator R220 - 配件

暂无配件

2L Electric Lift Rotary Evaporator R220 - 优势

high efficient evaporator
high receiving rate
low leakage rate
